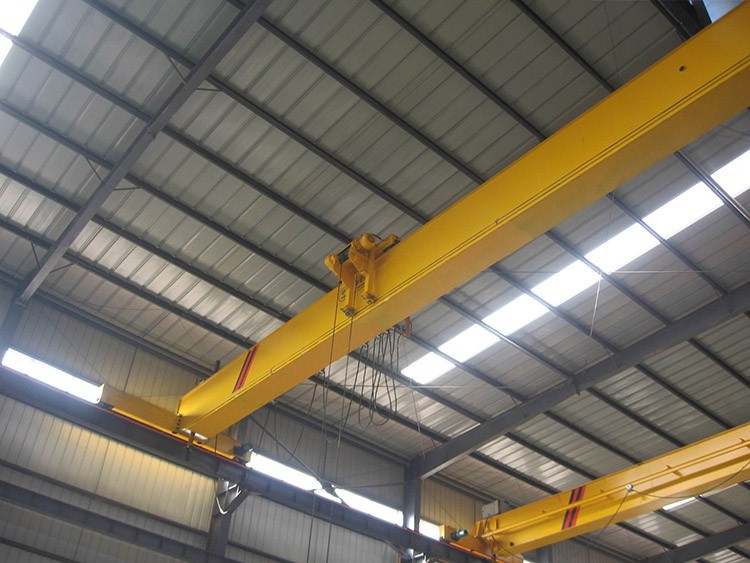

Product Description

Professional Design Single Girder Crane 10T LDP 20-40M/Min Trolley Running Speed is designed and manufactured according to standard JB / T1306-94. It is used in conjunction with CDI, MDI and other forms of electric hoist to become a light and small crane with rail operation, which is suitable for The lifting capacity is 1-10t, and the applicable span is 10.5-25.5 meters. The working environment temperature is within the range of -25 to + 40 ℃.

For the convenience of users, there are two types of operation modes: ground and operation room. The operation room is also provided with two forms of end and side door opening for users to choose to use.

Technical Data Sheet

Product Characteristics

Professional Design Single Girder Crane 10T LDP 20-40M/Min Trolley Running Speed is a general-purpose crane, which is mostly used for lifting and transporting slender objects and other places. Its structural characteristics are as follows:

1. Metal structure

• The main beam is a box structure beam welded with steel plates. The end beams are rolled into U-shaped channel steel with steel plates, and then assembled into box beams. For the convenience of storage and transportation, the main end beams are connected together by high-strength bolts.

2. Electric hoist:

• The electric hoist can lift heavy objects, and is installed on the trolley to move along the longitudinal direction of the main beam. For its structural characteristics, please refer to the instruction manual of the electric hoist.

3. Operating mechanism:

• This product adopts a separate driving method, and the driving brake is completed by a conical brake motor. The transmission is driven by a "one open and one closed" gear. The closed gear part is decelerated by using a 5t cone hoist to run the car. machine.

4. Electrical equipment:

• The running motors used in this product are single-speed tapered squirrel-cage motors (for operating speeds of 20, 3 m / min) and tapered wire-wound motors (for operating speeds of 45 m / min). The two types vary with the type of operation. There are two types of electrical control. The electric hoist and the entire crane are equipped with safety devices, such as helix limit switch, end limit switch, etc.

5. The method of specification of this product is as follows:

• (1) Ground control

Example: lifting weight: 10t, span: 22.5m, working level: A3

Representation: LDP10-22.5A3D, JB / T1306-94

• (2) Operation room control

Example: lifting weight: 10t, span: 22.5m, working level: A3

Representation: LDP10-22.5A3S, JB / T1306-94

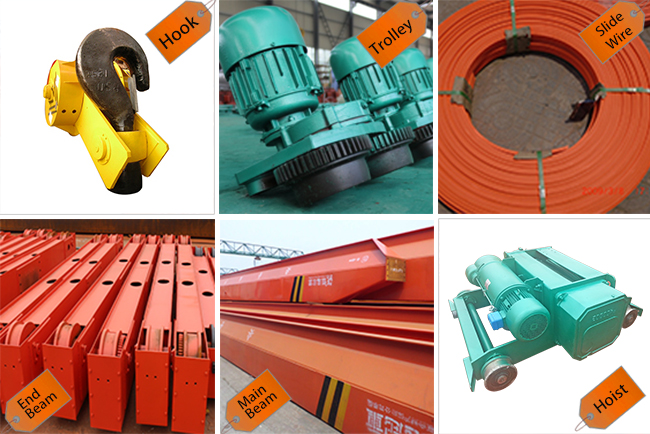

Parts Of Crane

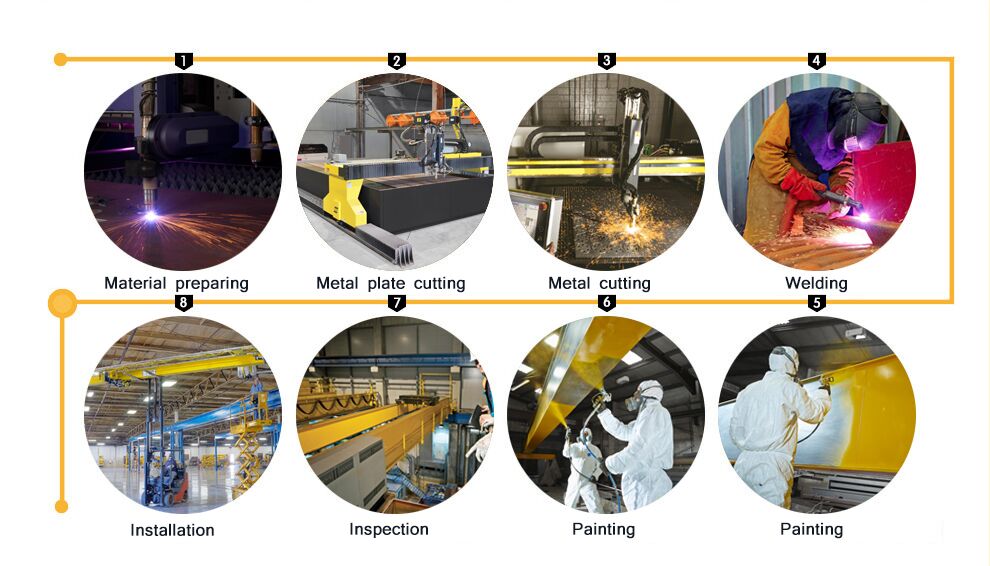

Process

Dowellcrane products process is a system line, We forcus on every detail of single girder overhead crane. From buy material to finished product. Evey step is controled by related department. Product safety and usage life is our core of service. We could acept every client's advice and learn the advanced foreign technology. Our own engineer group study more advanced ways to make the single girder overhead crane's funcation more perfect. For user could use this crane more safety and easier.

Packing & Delivery:

▶ Hoist and electric parts will be packed by plywood crate, for avoiding the demage from goods crash and impact during the delivery.

▶ Girders and other main parts will be packed by plastic woven cloth, for preventing rust from soppy condition during the transportation.

▶ Only the best transport solution will be taken for saving your cost uttermost on finance, security and time.
