    5t Lx Model Motordriven Suspension Underslung Overhead Crane

    Ask Lasest Price
    Brand Name : Dowellcrane
    Model Number : LX
    Certification : SGS IOS CE
    Price : USD5000-50000/set
    Supply Ability : 4000sets per year
    Delivery Time : 35days
    • Product Details
    • Company Profile

    5t Lx Model Motordriven Suspension Underslung Overhead Crane

    5t Lx Model Motordriven Suspension Underslung Overhead Crane

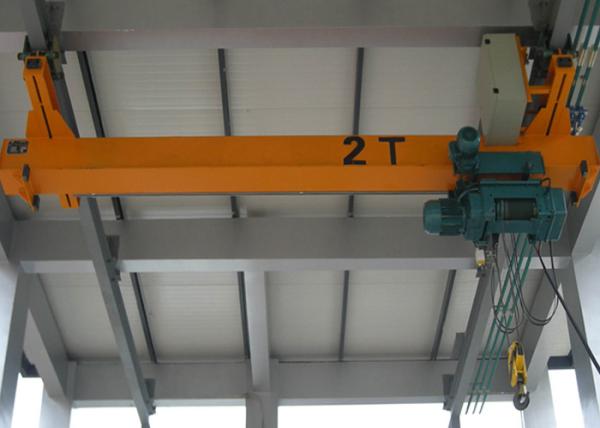

    The Lx model single beam overhead suspension crane 1~10 ton is used with CD1 and MD1 electric hoists to form a light and small crane with rail operation. The machine is mostly made of dry machinery. Assembly workshops and warehouses, caves and other places. Run rails with I-beams.


    Form of overhead crane:

    Lifting weight t1 2 3 5
    span m1t 2t 3t 5t s<12m5t s≥12m 10t
    Crane operating mechanismRunning speed20
    electric motormodelZDY12-4ZDY12-4
    power2×0.42×0.8
    Rotating speed1380
    Lifting structure (electric hoist) and electric hoist running structuremodelCD1,MD1
    Lifting speed7.0 7.0/0.76 6/0.6
    Raise6/9/12/18
    Running speed20
    electric motorCone cage
    Working systemA3-A5
    power supply3-phase 3820V 50Hz
    Wheel diameterФ130
    Applicable rail I-beam (3-5t)120a-145C
    Applicable rail I-beam (1-2t)

    120a-145C



    Parts of overhead crane:
