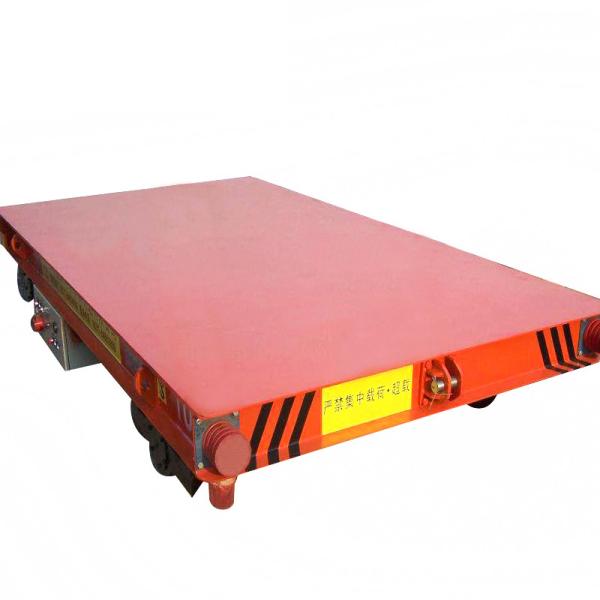

Transport Cargos Workshop 5T Motorized Platform Cart

    Buy cheap Transport Cargos Workshop 5T Motorized Platform Cart from wholesalers

    Buy cheap Transport Cargos Workshop 5T Motorized Platform Cart from wholesalers
    • Buy cheap Transport Cargos Workshop 5T Motorized Platform Cart from wholesalers
    • Buy cheap Transport Cargos Workshop 5T Motorized Platform Cart from wholesalers
    • Buy cheap Transport Cargos Workshop 5T Motorized Platform Cart from wholesalers

    Transport Cargos Workshop 5T Motorized Platform Cart

    Ask Lasest Price
    Brand Name : DOWELL
    Model Number : KPC KPDS KPDZ KPJ KPT KPX
    Certification : ISO SGS CE
    Price :
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10000 SET/YEAR
    Delivery Time : 25 work days
    • Product Details
    • Company Profile

    Transport Cargos Workshop 5T Motorized Platform Cart

    motorized platform cart workshop 5 ton electric industrial odm transfer cart


    Product introduction

    Motorized platform cart workshop 5 ton electric industrial odm transfer cart is also known as electric flat cart, which is a kind of electric rail transportation car that are widely used in factories and plants. Transfer cart is a rail type transportation vehicle, and users need to lay rail tracks on the ground that is generally H-shaped contact rail in advance. Battery transfer cart can work automatically under the motivation of electricity, which is a flat car that has no cover or steeling wheel.


    We can provide diffrent types of transfer cart, specific types as follow can be choosed.


    Model:

    KPX-20T

    Capacity:

    20T

    Table length:

    4000mm

    Table width:

    2200mm

    Table height:

    550mm

    Wheel Base:

    2800mm

    Rail inner Gauge:

    1435mm

    Wheel Dia:

    ∅350mm

    Wheels Number:

    4

    Ground Clearance:

    50mm

    Running Speed:

    0-20m/min

    Power source:

    2.2kw

    Motor power:

    180Ah

    Battery Volatge:

    48V

    Running Time when full load:

    4H

    running distance:

    4.8KM

    Wheel Load:

    77.7KN

    Reference weight:

    5.9T

    Recommend Rail type:

    P24



    Application

    Transport Cargos Workshop 5T Motorized Platform Cart

    Product advantage


    DOWELL CRANE engaged in crane industry 14 years, transfer cart is one of the hot sale products and we can introduce the advantages of transfer cart in details for your reference.
    1. It has high a nti-explosion and a nti-high temperature performance.
    2. Electric transfer cart has no strict requirement for the construction of the railway .
    3. It has safe and flexible movement, which is also convenient to use.
    4. The running speed of the electric transfer carts can be adjusted with actual situation.


    Product packaging

    Transport Cargos Workshop 5T Motorized Platform Cart


    Product Parameter

    Modle
    KPX-10T
    KPX-30T
    KPX-50T
    KPX-80T
    KPX-100T
    KPX-150T
    Table Size (m)
    3.6*2.0*0.5
    4.5*2.2*0.6
    5.5*2.5*0.65
    6.0*2.6*0.8
    6.5*2.8*0.9
    10*3.0*1.2
    Power
    Maintenance Free Battery
    Rail inner Gauge
    1435mm
    1435mm
    1435mm
    1800mm
    2000mm
    2000mm
    Wheel Dia.
    350mm
    400mm
    500mm
    600mm
    600mm
    600mm
    Running Speed
    0-20m/min
    0-20m/min
    0-20m/min
    0-20m/min
    0-20m/min
    0-20m/min
    Motor Power
    1.6kw
    3.5kw
    5kw
    8kw
    10kw
    15kw
    Battery Capacity
    180Ah
    250Ah
    330Ah
    400Ah
    440Ah
    600Ah
    Battery Volatge
    48v
    48v
    48v
    72v
    72v
    72v
    Max Wheel Load
    42.6Kn
    110.4Kn
    174Kn
    278.4Kn
    343.8Kn
    265.2Kn
    Reference weight
    4.2t
    6.8t
    8t
    12.8t
    14.6t

    26.8t
    Recommend Rail
    P24
    P38
    P43
    P50
    QU100
    QU100

    Payment Method

    Here show you the approximate EXW price of our product for your preview. This price just for reference for your budget, if any interest please click "More" to see detailed price sheet.


    EXW PRICE LIST FOR YOUR REFERENCE
    Platform size
    Load capacity2.5m*2m5m*2m
    3tUS$2,000.00US$2,800.00
    5tUS$2,500.00US$3,500.00
    10tUS$3,000.00US$4,200.00
    15tUS$3,700.00US$5,180.00
    20tUS$5,950.00US$8,350.00
    30tUS$6,850.00US$9,550.00
    50tUS$9,550.00

    US$13,350.00


    Product details


    Transport Cargos Workshop 5T Motorized Platform Cart

    Transport Cargos Workshop 5T Motorized Platform Cart


    Our company

    Transport Cargos Workshop 5T Motorized Platform Cart

    This is our certifications, we can gnranteed the quality of products for customers.


    MORE INFORMATION AND PRODUCTS YOU CAN GET BY OUR WEBSITE. 24/7 customer service

    inquire

    http://www.dowellcranecn.com/


    Please inform us the following details while you send the inquiry:


    1.What is the lifting capacity?

    2.What is the span?

    3.What is the lifting height?(Lifting height=Distance from hook to ground)

    4.What is the lifting speed?(Single speed or double speed)

    5.What control mode do you need?(Pendant control or remote control or cabin)

    6.What is the power supply in your country?(Our standard power supply is 380V,3Ph,50Hz)

    7.Is there any other special requirements?(Like need us to supply rails?how long? etc)
