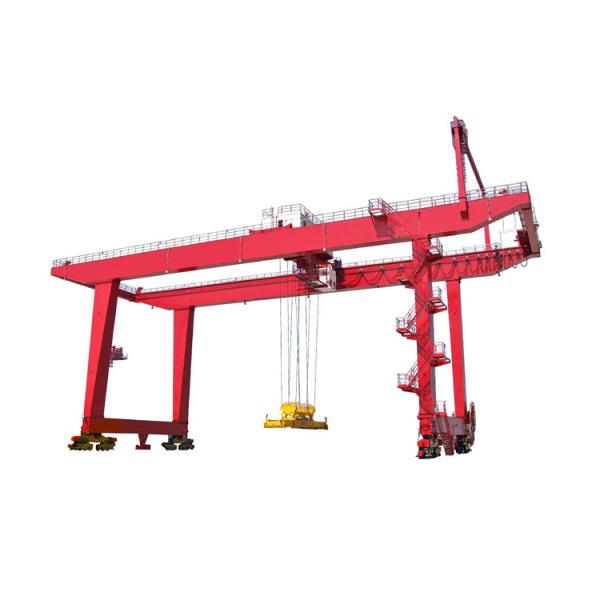

    Rail Mounted Shipping Container Gantry Crane 500t 31.5m

    Ask Lasest Price
    Brand Name : Dowellcrane
    Model Number : RMG
    Certification : ISO CE SGS
    Price : 50000-200000USD/Set
    Supply Ability : 400sets/years
    Delivery Time : 60days
    • Product Details
    • Company Profile

    Rail Mounted Shipping Container Gantry Crane 500t 31.5m

    Factory Directly Supply Shipping Container Rail Mounted Gantry Crane


    Rail Mounted Gantry Crane Description:

    RMG Rail Mounted Port Container Gantry Crane is mainly used for loading and unloading, handling and stacking of containers at railway transit yard and large container yard.

    Port using gantry crane container spreader 80ton consists of the main girder, rigid and flexible legs, upper and lower separate, trolley, crane travelling mechanism, container spreader,electrical system and operating cabin. According to working requirements, gantry crane sets single or double cantilever.


    Rail Mounted Gantry Crane Parameter

    item
    value
    Feature
    Gantry Crane
    Marketing Type
    New Product 2020
    Warranty of core components
    1.5 years
    Rated Loading Capacity
    other
    Rated Lifting Moment
    5t~450t/80t
    Max. Lifting Height
    30m
    Span
    10.5m~31.5m


    Rail Mounted Gantry Crane Drawing



    Rail Mounted Gantry Crane Features


    1.Double box beam with steel legs moving through the ground beam as crane travelling system

    2.The camber of main beam will be designed as Span*1-1.4/1000.

    3.Steel Material: Q235 or Q345

    4.Shot-blasting Sa2.5 for main girder and supporting beam

    5.Epoxy zinc rich high quality painting.

    6.Electrification and outfitting

    7.Conductor power supply: Cable Reel or busbar.

    8.Frequency conversion, double speed, single speed, and All hoist and crane movements are independent an d can be run simultaneously different design duo to meet crane applications

    9.Whole layout provides good protection against special working environment. Such as gas workshop


    Rail Mounted Gantry Crane Details Show:


    Certifications



    Package and Delivery


    1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying;
    2. Main beams, end beams and electric hoist are packed by plastic woven cloth. It can reduce abrasion when transport.
