    Workshop Gantry Shipping Container Crane Cabin Control 50T Loading

    Ask Lasest Price
    Brand Name : Dowellcrane
    Model Number : MG Gantry Crane
    Certification : CE ISO GOST TUV BV
    Price :
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 5000 Sets per Year
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    Workshop Gantry Shipping Container Crane Cabin Control 50T Loading

    customized shipping container crane workshop gantry crane


    Product Description


    customized shipping container crane workshop gantry crane is a kind of rail mounted crane used to offload, stack and load 20ft, 40ft, 45ft ISO standard containers. Its provision of power is offered by cable reel. The crane contains three mechanisms: hoisting, trolley travelling and gantry travelling. The trolley running along the track mounted on gantry beam is capable to serve among legs. The crane is able to make straight movement along rails.


    Application


    It is suitable for the loading and unloading and handling of various materials in open-air warehouses, cargo (material) yards, railway stations, ports and docks. Features of this crane: The bridge frame adopts box-shaped double-girder welding structure, the crane runs smoothly, and the wind resistance is good, and each mechanism is equipped with a safety protection device. Disadvantages: long delivery time and relatively high price.


    Product Characteristics


    The method of specification of this product is as follows:

    (1) Ground control

    Example: lifting weight: 20t, span: 22m, no cantilever, lifting height 10m, working level A5

    Representation: MG20-22-10DA5

    (2) Operation room control (separate operation room KS and closed operation room BS)

    Example: lifting weight: 32t, span: 18m, left and right cantilever 5m, lifting height 10m, working level A5, closed operation room operation

    Representation: MG32-18-5 / 5-10BSA5

    (3) Remote control

    Example: lifting weight: 10t, span: 18m, lifting height 10m, working level A5

    Representation: MG10—26—10YA5

    When ordering, the conductive form of the crane should be indicated (there are two types of cable drum conductive and safety slide wire conductive).


    Technical data sheet


    Lifting weight (t)101620/1032/1036/1650/10
    Span (m)18~3518~3018~35222622~3535

    Lifting height (m)


    Main hook11.510.5,1210.511.511.512
    Auxiliary hook11121213
    Speed (m/min)Main hook8.57.97.27.57.86
    Auxiliary hook10.410.410.510.4
    Trolley travel43.844.544.541.941.938.13
    Long travel37.6,4038,3638,364040,3838
    Duty classificationA5
    Power source

    Three-phase AC. 127~480V 50/60Hz

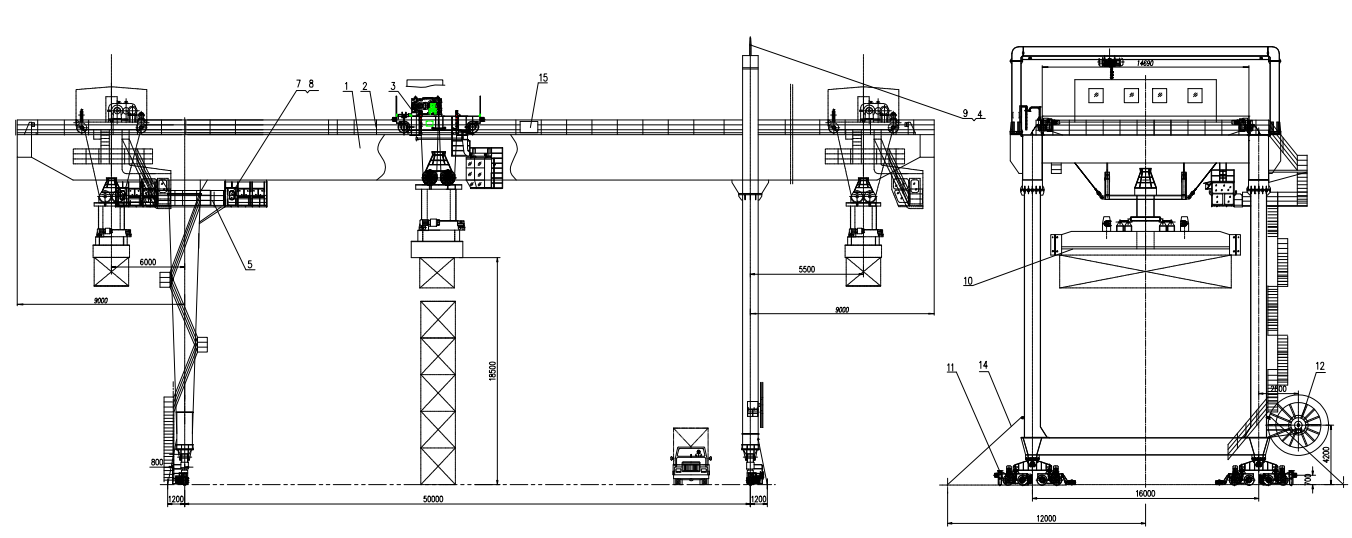

    Schematic drawing

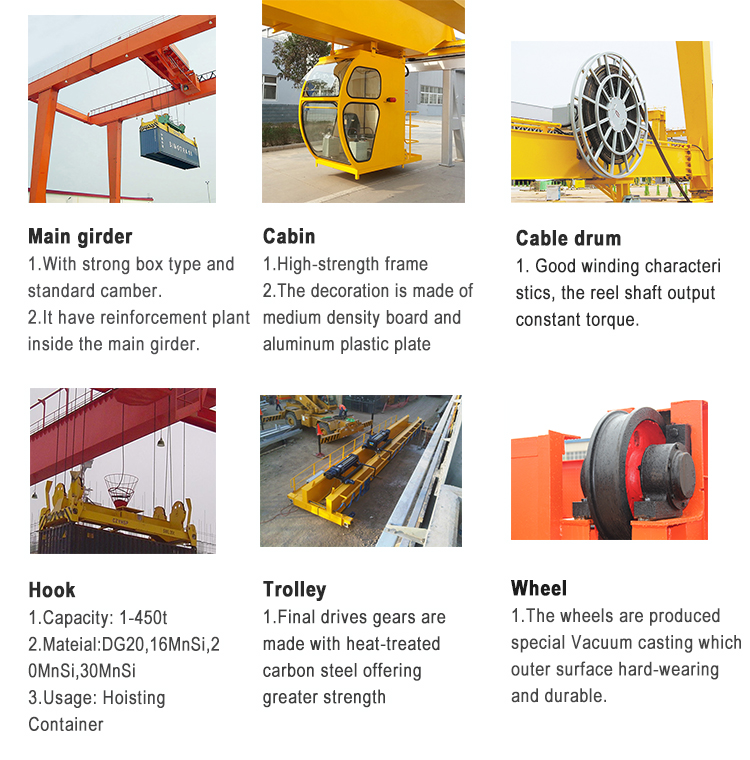

    Parts Of Crane
