    5 Ton Electric Hoist 220V - 440V With Remote For Overhead Crane

    Ask Lasest Price
    Brand Name : Dowellcrane
    Model Number : CD MD
    Certification : CE ISO
    Price : US$350.00-US$6,450.00
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 200 Set/Sets per Month
    Delivery Time : 15 work days
    • Product Details
    • Company Profile

    5 Ton Electric Hoist 220V - 440V With Remote For Overhead Crane

    Factory Supplier 5 Ton Electric Hoist With Remote For Overhead Crane


    Electric Hoist Description


    Electric hoist is a lifting device that utilizes electric power to lift, lower, and move heavy loads in various applications. It is commonly used in industrial, construction, and manufacturing settings to improve efficiency and safety when handling heavy objects. Electric hoists come in various designs, capacities, and configurations to suit specific needs.


    Electric Hoist Specification


    Very Popular Vertical Lifting Wire Rope Electric Cable Hoist Winch
    Model
    CD/MD
    0.25t
    CD/MD
    0.5t
    CD/MD
    1t
    CD/MD
    2t
    CD/MD
    3t
    CD/MD
    4t
    CD/MD
    5t
    Lifting Weight
    0.25
    0.5
    1
    2
    3
    5
    10
    Lifting Height(m)
    3-9
    6-12
    6-30
    6-30
    6-30
    6-30
    6-30
    Lifting Speed(m/min)
    8(8/0.8)
    8(8/0.8)
    8(8/0.8)
    8(8/0.8)
    8(8/0.8)
    8(8/0.8)
    7(7/0.7)
    Running Speed
    20(30) m/min
    Wire Rope Model
    6×19-3.6
    6×37-4.8-180
    6×37-7.4-180
    6×37-11-155
    6×37-13-170
    6×37-15-200
    6×37-15-200
    I-beam Track Model
    16-22b
    16-28b
    16-28b
    20a-32c
    20a-32c
    25a-63c
    28a-63c
    Minimum radius of circular orbit(m)
    0.8
    1.5
    1.5-4
    2-4
    2-4
    2.5-5
    3.5-9
    Lifting Motor
    Motor
    ZD12-4
    ZD21-4
    ZD22-4
    ZD31-4
    ZD41-4
    ZD41-4
    ZD51-4
    ZDS0.2/1.5
    ZDS0.2/1.5
    ZDS0.4/3
    ZDS0.4/4.5
    ZDS0.8/7.5
    ZDS1.5/13
    Capacity
    0.4
    0.8 0.2/0.8
    1.5 0.2/1.5
    3 0.4/3
    4.5 0.4/4.5
    7.5 0.8/7.5
    13 1.5/13
    rotation rate
    1380
    1380
    1380
    1380
    1380
    1400
    1400
    Power supply
    3P 380V 50HZ

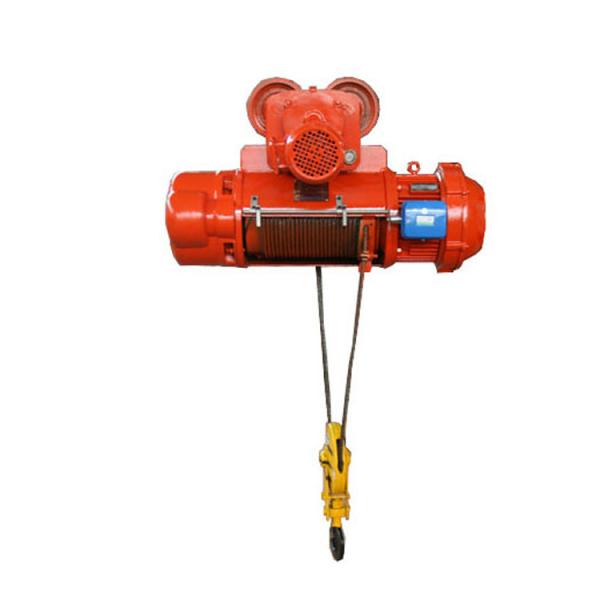

    Electric Hoist Detailed Images

    5 Ton Electric Hoist 220V - 440V With Remote For Overhead Crane

    Electric Hoist Features

    1. Motor: Electric hoists are powered by electric motors, which can be single-phase or three-phase, depending on the application and power availability.

    2. Lifting mechanism: The lifting mechanism typically consists of a chain or wire rope that is wrapped around a drum or a series of pulleys. The motor drives the drum or pulleys, causing the chain or wire rope to lift or lower the load.

    3. Control system: Electric hoists are operated using a control system, which can be a pendant control, a wireless remote control, or an integrated control panel. The control system allows the operator to precisely control the hoist's movement and speed.

    4. Load capacity: Electric hoists are available in various load capacities, ranging from a few hundred kilograms to several tons. It is essential to choose the appropriate capacity hoist for the intended application to ensure safe and efficient operation.

    5. Safety features: Electric hoists often include safety features such as limit switches, emergency stop buttons, and overload protection to prevent accidents and damage to the equipment.

    6. Braking system: A braking system is crucial for ensuring the safe operation of an electric hoist. Most electric hoists utilize either mechanical or regenerative braking systems to stop the lifting mechanism in case of a power failure or other emergencies.

    7. Trolley systems: Electric hoists can be mounted on trolleys, allowing them to move along a fixed path, such as an overhead beam or rail system. This increases the versatility of the hoist and allows it to cover a larger working area.


    ​Product Process


    Packaging&shipping

    1. Hoist and electric parts will be packed by plywood crate, for avoiding the demage from goods crash and impact during the delivery.
    2. Girders and other main parts will be packed by plastic woven cloth, for preventing rust from soppy condition during the transportation.
    3. Only the best transport solution will be taken for saving your cost uttermost on finance, security and time.


    About Us


    Henan Dowell Crane Co., Ltd is a China-leading group of crane businesses which was founded in 1955, And serving a broad range of customers all over the world to provide a complete set of advanced lifting project, including Gantry crane, Bridge crane, Jib crane, Accessory.

    • Henan Dowell Crane Co., Ltd has already obtained the CCC,CE,BV,SGS,ISO OHSAS certifications and has won over 60 honors
    • Our company offers services for more than 5000 companies, and the products are polular in more than 100countries.
