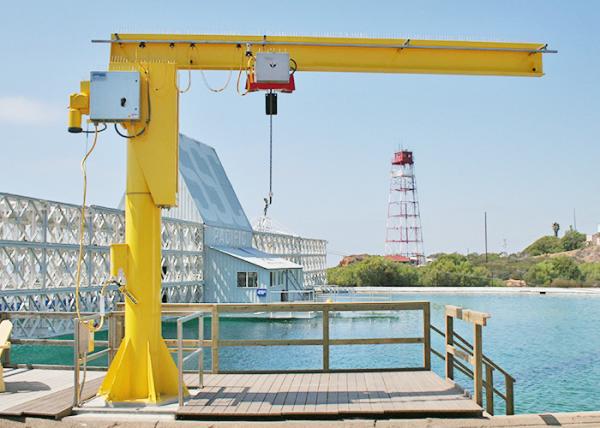

    BZ Model Cantilever Jib Crane Pillar Floor Mounted Pendent Wire Control

    Ask Lasest Price
    Brand Name : Dowellcrane
    Model Number : BZ
    Certification : SGS IOS CE
    Price : 1000~20000$/1 set
    Payment Terms : L/C, T/T
    Supply Ability : 20000 Sets per Year
    Delivery Time : 20 work days
    • Product Details
    • Company Profile

    BZ Model Cantilever Jib Crane Pillar Floor Mounted Pendent Wire Control

    BZ Model Pillar Floor Mounted Cantilever Jib Crane


    Product Description


    Column is made of seamless steel pipe, and the main girder is made of 1-beam girder or KBK light beam, rotating way can be manual(< 1t) or electric. JIB crane can be equiped electric wire rope hoist, electric chain hoist or manual hoist. It is suitable to work in the short-range and intensive lifting occasions. So it’s widely used in workshops, warehouses, docks and other fixed place.
    We can recommend different models of cranes according to different working requirements. This kind of machine has two types of manipulation: electric and manual operation. Rotary arm rotation angle can be chosen from 180 °, 270 °, 345 °, 360 ° according to client’s usage.


    Electric System


    1. Power supply through step less slide lines;
    2. Lifting mechanisms and traveling mechanisms are mutually independent and could travel at the same time;
    3. Control panel protection degree is IP54;
    4. Reasonable components installation, convenient for check and maintenance;
    5. Electric cable is suspended in cable saddle, stationary cable trolley which slides on a galvanized C-type steel.


    Product Parameters


    Product NameBZ Model Pillar Crane Floor Mounted Cantilever Jib Crane
    Lift capacity(T)
    1, 2, 3, 5, 10, 16, 20
    Span(M)
    7.5-22.5
    Mechanism traveling
    speed(m/min)
    10, 20, 30
    45, 60
    motor
    type
    ZDY1 21-4
    ZDR12-4
    power(kw)
    2*0.8
    2*1.5
    speed(r/min)
    1380
    1380
    Electric chain hoist or wire rope hoist
    model
    CD1/MD1/HHBB
    lift height(m)
    3-25
    traversing speed(m/min)
    20,30 or can be customized
    lifting speed(m/min)
    8(7); 8/0.8(7/0.7)
    Workclassfication
    A3-A5
    Power supply
    380V/50HZ or on request

    Product Drawings

    Product Features


    • Column using seamless pipe,main beam use I-beam.
    • Rotation can be manual or motorized.
    • Hoist can be equipped with electric wire rope hoists, electric chain hoists or manual hoists.
    • Unique structure, safe and reliable, high efficiency and flexible.
    • Can be customized according to client’s requirements.
    • Easy installation.

    Package & Delivery




    About Us





    FAQ


    If you have inquire for jib crane, please confirm with us the following details. Then we will quote you a suitable price.
    What kind of goods will this crane lift?

    1. Lift capacity? (1ton 2ton 3ton 5ton 10ton..?)
    2. Working radius? (3m, 5m, 6m, 9m...?)
    3. Lift height?(3m. 6m, 9m 12m...?)
    4. Power supply in your local?(It could be customized by your requirement)
    5. Nearest port? (We could supply the CIF or CFR price after we know the discharge port.)
