    5 Ton Slewing Jib Crane Column Mounted Free Standing Pillar

    Ask Lasest Price
    Brand Name : Dowellcrane
    Model Number : BZ
    Certification : SGS IOS CE
    Price : 1000~20000$/1 set
    Payment Terms : L/C, T/T
    Supply Ability : 20000 Sets per Year
    Delivery Time : 20 work days
    • Product Details
    • Company Profile

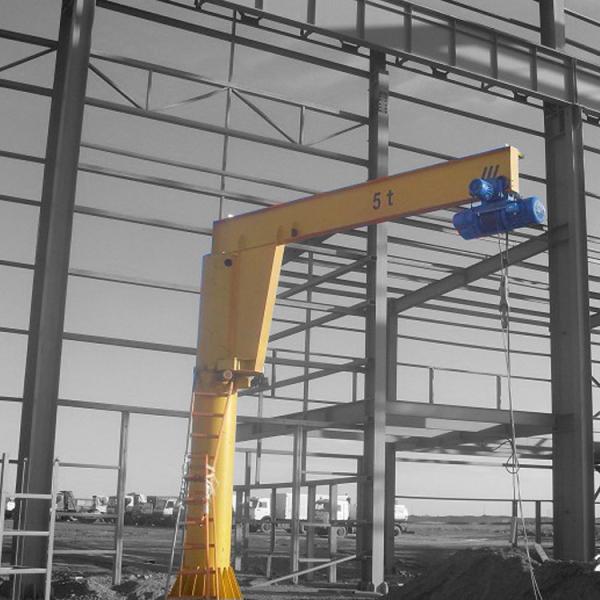

    5 Ton Slewing Jib Crane Column Mounted Free Standing Pillar

    Free Standing Pillar Column mounted slewing Jib crane


    Product Description


    Free Standing Pillar Column mounted slewing Jib crane is mainly used for boat and workshop. The leg is fixed on the floor, and work range is the circle of arm diameter. It is very convenient for loading and unloading the cargo in the small area, no need steel structure to support it , free standing.


    Electric System


    1. Power supply through step less slide lines;
    2. Lifting mechanisms and traveling mechanisms are mutually independent and could travel at the same time;
    3. Control panel protection degree is IP54;
    4. Reasonable components installation, convenient for check and maintenance;
    5. Electric cable is suspended in cable saddle, stationary cable trolley which slides on a galvanized C-type steel.


    Product Parameters


    Product Name

    Free Standing Pillar Column mounted slewing Jib crane

    Model
    Unit
    BZD0.5
    BZD1
    BZD2
    BZD3
    BZD5
    Rated capacity
    t
    0.5
    1
    2
    3
    4
    Max. Lifting height
    m
    3
    5
    Max. working range
    m
    4
    5
    Max. turning radius
    m
    5
    4.5
    Max. lifting torque
    tm
    3
    5.2
    8.5
    12.2
    18.8
    Rotation angle
    °
    ≤360
    Lifting speed
    m/min
    8; 8/0.8
    Trolley travelling speed
    m/min
    20
    Rotation speed
    m/min
    1
    0.75
    0.7
    0.9
    0.6
    Weight
    kg
    1000
    1150
    1350
    3500
    4500

    Product Drawings

    Product Features


    • It can be mounted to your facility floor, foundation, column, pillar or wall to accommodate any space constraints.
    • Our Swing level offer an extensive range of installation options and capacities
    • Load capacity from 0.5t to 5t.
    • It is useful where overhead hoists are neither practical nor feasible.
    • This machine utilize 360 degree floor coverage, allowing unrestricted placement of machinery and equipment.

    Package & Delivery



    FAQ


    1. How to place an order?

    Answer: Tell us your detailed requirements (including your product materials, product dimensions and product weight), and we will send you detailed parameters and quotations as soon as possible.
    2. What is your price?
    Answer: The price depends on your requirements for the equipment. According to the model, the price is relatively different.
    3. How should I pay?
    Answer: We accept wire transfer; letter of credit.
    4. How long do I need to order?
    Answer: ustom-made orders, no stock, you need to determine the delivery time according to the situation, if you need urgent items, please contact customer service.
    5. About the guarantee
    Answer: Our machines enjoy a complete 3-year warranty, and important parts enjoy a 5-year warranty.
    6. Mode of transportation
    Answer: You can choose sea, air, rail transportation (FOB, CIF, CFR, EXW, etc.)
