A5 Electric Hoist Portable Wall Mounted Jib Crane

    Buy cheap A5 Electric Hoist Portable Wall Mounted Jib Crane from wholesalers

    Buy cheap A5 Electric Hoist Portable Wall Mounted Jib Crane from wholesalers
    • Buy cheap A5 Electric Hoist Portable Wall Mounted Jib Crane from wholesalers
    • Buy cheap A5 Electric Hoist Portable Wall Mounted Jib Crane from wholesalers

    A5 Electric Hoist Portable Wall Mounted Jib Crane

    Ask Lasest Price
    Brand Name : Dowellcrane
    Model Number : Jib Crane
    Certification : ISO CE BV CCC GOST SGS
    Price :
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 40000 Set/Sets per Month
    Delivery Time : 15 work days
    • Product Details
    • Company Profile

    A5 Electric Hoist Portable Wall Mounted Jib Crane

    China manufacturer modern industry light duty rope electric hoist portable wall mounted jib crane


    Product Description


    jib crane is a type of crane where a horizontal member (jib or boom), supporting a moveable hoist, is fixed to a wall or to a floor-mounted pillar. Jib cranes are used in industrial premises, workshop and on military vehicles.
    The jib may swing through an arc, to give additional lateral movement, or be fixed. Similar cranes, often known simply as hoists, were fitted on the top floor of warehouse buildings to enable goods to be lifted to all floors.


    technical data sheet

    Item
    Specifications
    Capacity(T)
    0.5-16
    Valid radius(M)
    4-5.5
    Lifting height(M)
    4.5/5
    Hoisting speed(M/MIN)
    0.8 / 8
    Slewing speed(R/MIN)
    0.5-20
    Circulated speed(M/MIN)
    20
    Slewing angle(degree)
    180°/270°/ 360°

    Product Details

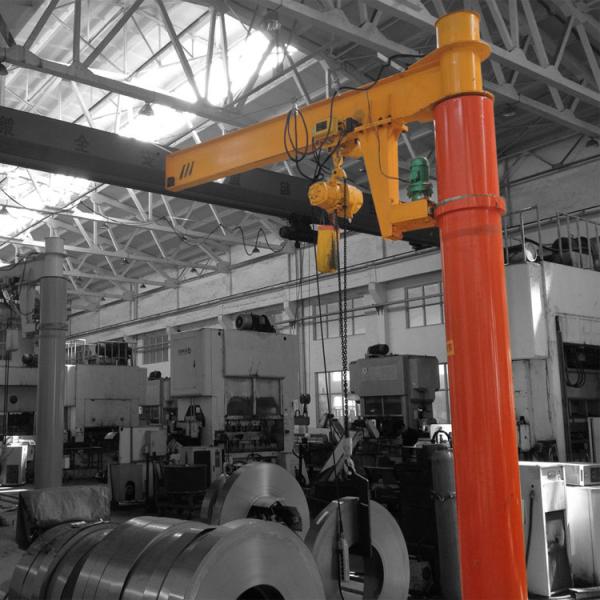

    motor driven electric Post jib Crane


    Advantages


    China manufacturer rope electric hoist portable wall mounted jib crane is mainly composed of top column, low column, main girder, main girder pole, electric hoist, rotation mechanism and electrical system, etc.Normally control model of jib crane with remote control or pendent line with press button or both.Compact structure, easy-operation, small occupied space, large work scope.


    Application


    Modern industry Production line, Assembly line of machining, Automobile industry, shipbuilding and Material lifting and warehouse, wharf, Laboratory.It`s an optimal lifting equipment for enterprise to improve work efficiency and working conditions.


    Package & Delivery


    A5 Electric Hoist Portable Wall Mounted Jib Crane


    A5 Electric Hoist Portable Wall Mounted Jib Crane

    FAQ


    1: How to place an order?
    Answer: Tell us your detailed requirements (including your product materials, product dimensions and product weight), and we will
    send you detailed parameters and quotations as soon as possible.
    2: What is your price?
    Answer: The price depends on your requirements for the equipment. According to the model, the price is relatively different.
    3: How should I pay?
    Answer: We accept wire transfer; letter of credit; Alibaba trade guarantee.
    4: How long do I need to order?
    Answer: The standard vacuum suction cup spreader, the delivery time is 7 days, custom-made orders, no stock, you need to determine
    the delivery time according to the situation, if you need urgent items, please contact customer service.
    5: About the guarantee
    Answer: Our machines enjoy a complete 1-year warranty, and important parts enjoy a 5-year warranty.
    6: Mode of transportation
    Answer: You can choose sea, air, rail transportation (FOB, CIF, CFR, EXW, etc.)
