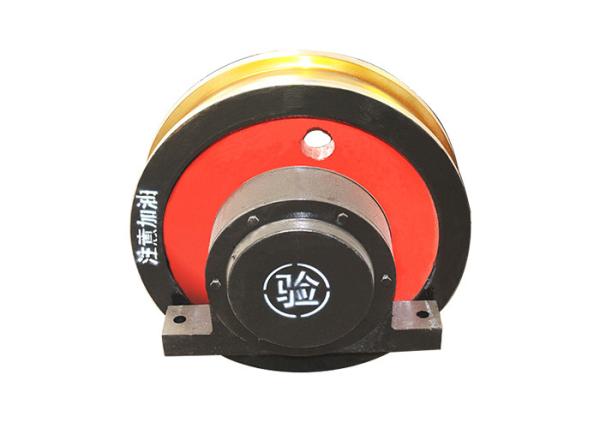

Gantry Crane And Overhead Crane Using Double Flange Crane Wheel

Advantages of Double Flange Crane Wheel

1. Reduce maintenance cost of your wheels and wheel assemblies

2. Improve the life of your rail

3. Provide an additional 40% load carrying capability over rim toughened wheels

4. Delivery in 6-8 weeks, less when required

Application Places

1. extensively used in factories, workshops, warehouses and many other occasions to hoist materials directly,

2. installed on the straight or curve I-steel beam of Single-girder Cranes to lift goods.

3. It can also be used together with Electric Hoist Double-beam, gantry crane and slewing cranes to hoist different items and so on.

It has so many appllication usages just for its advantages, such as: tight structure, convenient operation, light weight, wide common use and so on.

Crane Traveling Wheel Structure

The horizontal deflection value of the wheel of the control operating mechanism in the application is mainly based on different product structures. The more common design method with relatively simple technical measures is to assemble the wheel to the bracket to form a wheel set, such as an angular bearing box wheel set and a trolley type 45° split bearing box wheel set, which are installed on the main structure of the crane. Adjust the horizontal deflection of the wheel to fix it. The wheel set is mainly suitable for QD5~100T electric double girder bridge type and gantry crane.

Drawings Of Crane Wheels

Dowell Crane Co., Ltd is a China-leading company in crane manufacture and crane trading business. We serve a broad range of customers from all over the world, providing a complete set of advanced lifting projects, including Gantry crane, Bridge crane, Portal crane,
Beam launcher, Electric winch, Lifting platform and so on. Dowell crane is sticking to the global optimal procurement of raw materials and parts to make innovations in technical details of electric control and mechanical transmission,etc.We continue the wide and deep cooperation with the well-known transnational enterprises such as Simens and Sew in Germany, Schneider in France and ABB in Switzerland, etc.

Company Strength

Dowell Crane Co., Ltd is a China-leading group of crane businesses which was founded in 1955, Only one company has 60years manufacture experience. And serving a broad range of customers all over the world to provide a complete set of advanced lifting project, including Gantry crane, Bridge crane, Jib crane, Accessory. Our clients include manufacturing and process industries, shipyards, ports and so on. Regardless of your lifting needs, dowellcrane Machinery Group is committed to providing you with lifting equipment and services that increase the effectiveness and value of your business.

a). Dowell Crane Co., Ltd have already obtained the CCC,CE,BV,SGS,ISO OHSAS certification's and have won over 60 honors.

b). China's leading mechanical research and design institute and famous university provides advanced technical support for us.

c). Serviced for more than 5000 companies, and the products popular in more than 40 countries.

d). Through decades of unremitting efforts, now, Dowell Crane Co., Ltd covers an area of 180,000 square meters and over 380 sets of advanced equipments. Management staff reach to 860, and our worker have more than 10000.

Packing & Delivery terms:

1. Hoist and electric parts will be packed by plywood crate, for avoiding the demage from goods crash and impact during the delivery.

2. Girders and other main parts will be packed by plastic woven cloth, for preventing rust from soppy condition during the transportation.

3. Only the best transport solution will be taken for saving your cost uttermost on finance, security and time.
