    5 Ton Warehouse Overhead Crane 8m/Min Lifting Class A4

    Ask Lasest Price
    Brand Name : Dowellcrane
    Model Number : LD
    Certification : ISO CE
    Price :
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 4000sets per years
    Delivery Time : 40 work days
    • Product Details
    • Company Profile

    5 Ton Warehouse Overhead Crane 8m/Min Lifting Class A4

    warehouse 5 ton overhead crane for sale


    Basic Description


    Lifting Capacity: 1~25t
    Span Length: 7.5~31.5m
    Lifting Height: 6~30m
    Lifting Speed: 0.3-8m/min
    Working Class: A3, A4
    Ambient Temperature: -20~40℃

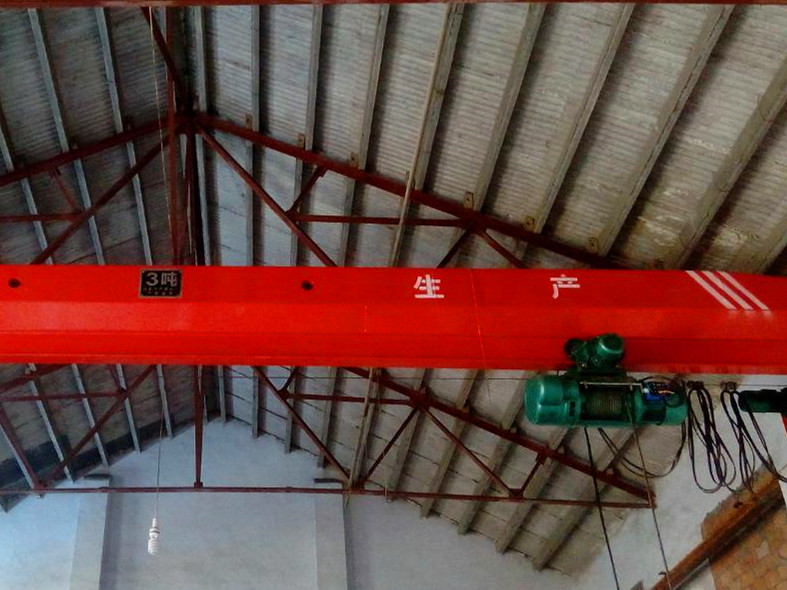

    warehouse 5 ton overhead crane for sale (also called an industrial crane, crane, or overhead traveling crane is a machine that lifts, Crane travel is directed by an operator, either manually or with a wired pendant station or wireless controls that guide their electric- or pneumatic-powered travel.


    121(1)

    FOR CRANE SAFETY, WHAT WE DO?


    Our warehouse 5 ton overhead crane for sale apply measures as below to insure crane safety during operation:

    • Overload limiter, for liftingsafety
    • Electromagnetic brake, quick response, up to 1000000 times braking lifespan.
    • Limit switch for long traveling
    • Welding quality inspection, guarantee load capacity of main girder and end beam/carriage.
    • Thermalelectromechanical protector
    • Electrical protection system

    Overhead Cranes parameters

    Capacityt3510162025
    SpanS(m)7.5~31.57.5~31.57.5~31.57.5~31.57.5~31.57.5~25.5
    Lifting heightm6~306~309~309~309~309~30
    Lifting speedm/min8(0.8/8)8(0.8/8)7(0.7/7)3.5(0.35/3.5)3.3(0.33/3.3)3(0.3/3)
    Trolley speedm/min20(30)20(30)20(30)181416
    Crane speedm/min20(30)20(30)20(30)20(30)20(30)20(30)
    Work dutyA3~A4A3~A4A3~A4A3~A4A3~A4A3~A4
    Track typeP24P24P24 P30P30 P38P38 P43P38 P43

    FAQ?


    If you want to get a price of our Overhead Crane, please help to confirm the details as below:


    1. What kind of materials will this overhead crane equipment deal with?
    2. Lift capacity? 3 ton, 5 ton, 10 ton or 16 ton?
    3. Span? Or your can tell us width of your workshop, then we will design?
    4. Lift height? 6 meters, 9 meters or 12 meters?
    5. Travel length? Or you can tell us length of your workshop, then we will design?
    6. Power supply in your local? Is 380V/50Hz/3P?
    7. Nearest sea port? We will quote you a CFR price for your reference.

    Parts of crane


    NO.1 Design of Main Girder

    5 Ton Warehouse Overhead Crane 8m/Min Lifting Class A4
    1. Welded box type with compact design;
    2. Improve the high utilization rate of the workshop and maximize the net lifting height ;
    3. Elegant appearance.

    NO. 2 Design of Festoon Cable


    5 Ton Warehouse Overhead Crane 8m/Min Lifting Class A4
    1.C steel trolley design to get nice appearance;
    2. Clean flat cable and smooth operation the electric hoist;
    3. Easy to be maintained and replaced

    NO. 3 Design of Support Frame for Current Collector

    5 Ton Warehouse Overhead Crane 8m/Min Lifting Class A4
    1. Special support frame for current collector;
    2. Connect with prefabricated base by bolts, easy to be mounted;
    3. Elegant appearance

    NO.4 Polishing Processing

    5 Ton Warehouse Overhead Crane 8m/Min Lifting Class A4
    1. Modern gantry shot blasting production equipment is used for the processing.
    2. Remove the rust and welding slag on the surface with iron sand to increase the adhesion performance of paint.
    3. Overhead crane with beautiful appearance.

    NO. 5 Painting Processing

    5 Ton Warehouse Overhead Crane 8m/Min Lifting Class A4
    1. Modernized retractable automatic painting workshop.
    2. Automatic spray painting process, with 2 times of base coat and 3 times of finish coat.
    3. Features of finish coat: strong adhesion, water resistance, wear resistance and corrosion resistance.

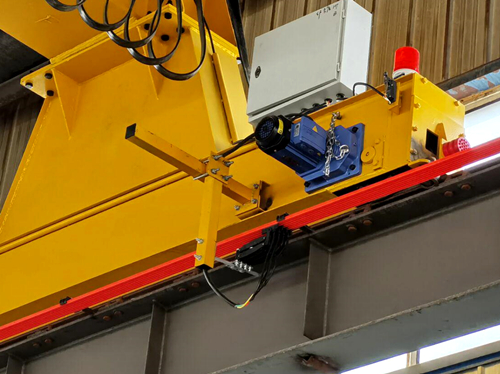

    NO. 6 Motors

    5 Ton Warehouse Overhead Crane 8m/Min Lifting Class A4
    1. Drive one brake motors;
    2. Lower working noise, stable operation and lower-cost maintenance;
    3. Safety chain to prevent falling of motors

    NO.7 Wheels

    5 Ton Warehouse Overhead Crane 8m/Min Lifting Class A4
    Wheels are modulated by heat treatment and smeared with anti-rust oil on the surface to increase the aesthetics.
