Lifting Tools Single Girder Overhead Bridge Crane

    Buy cheap Lifting Tools Single Girder Overhead Bridge Crane from wholesalers

    Buy cheap Lifting Tools Single Girder Overhead Bridge Crane from wholesalers
    • Buy cheap Lifting Tools Single Girder Overhead Bridge Crane from wholesalers

    Lifting Tools Single Girder Overhead Bridge Crane

    Ask Lasest Price
    Brand Name : dowell
    Model Number : LD
    Certification : ISO CE BV CCC GOST SGS
    Price :
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10000 Sets per Year
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    Lifting Tools Single Girder Overhead Bridge Crane

    Product Application

    Overhead crane commonly called a bridge crane, is a type of crane found in industrial environments. An overhead crane consists of parallel runways with a traveling bridge spanning the gap. A hoist, the lifting component of a crane, travels along the bridge.
    Overhead crane is widely used in plants,warehouses,material stocks to lift godds. It is prohibited to use the equipment in the combustiblle,explosive or corrosives enviroment.

    Payment method

    Here show you the approximate EXW price of our product for your preview. This price just for reference for your budget, if any interest please click "More" to see detailed price sheet.


    Detailed Quotation
    Load capacitySpan
    EXW PRICE LIST FOR YOUR REFERENCE7.5m12m16.5m21m25.5m30mMore>>
    2tUS$2,050.00US$2,500.00US$3,150.00US$4,000.00US$5,050.00US$6,350.00More>>
    3tUS$2,250.00US$2,800.00US$3,385.00US$4,500.00US$5,650.00US$6,750.00More>>
    5tUS$2,650.00US$3,285.00US$3,850.00US$5,125.00US$6,055.00US$7,625.00More>>
    10tUS$3,950.00US$4,750.00US$5,585.00US$6,750.00US$8,350.00US$9,950.00More>>
    16tUS$4,650.00US$5,500.00US$6,485.00US$8,100.00US$9,825.00US$11,650.00More>>
    20tUS$6,200.00US$7,150.00US$9,120.00US$10,600.00US$12,400.00US$14,550.00More>>

    overhead crane

    1.Hoist and electric parts will be packed by plywood crate, for avoiding the demage from goods crash and impact during the delivery.
    2.Girders and other main parts will be packed by plastic woven cloth, for preventing rust from soppy condition during the transportation.
    3.Only the best transport solution will be taken for saving your cost uttermost on finance,security and time.

    1. Load capacity, ton: ( ) {Tips: 2t 3t 5t 10t 15t 20t 25t 30t 40t 50t 100t 200t}

    2. Span, m: ( ) {Tips: 6m 9m 12m 15m 18m 21m 24m 30m 35m 40m}

    3. Valid lifting height,m:( ) {Tips: 3m 6m 9m 12m 15m 18m 21m 24m 30m}

    4. Aux hook: ( ) {Tips: need or no need}

    5. Speed,m/min: ( ) {Tips: single or double speed or vfd speed can be customized}

    6. Crane traveling length,m: ( ) {Tips: can be customized}

    7. Industrial voltage, V: ( ) {Tips: 380v or 440v, it depends on your country}

    8. Working class: ( ) {Tips: A3 A4 A5 A6 A7 A8}


    Suggested crane model according to the working class:

    Indoor crane

    Capacity, ton123510162025325074~550
    Normal workshop,A3{1-20t} LD single girder overhead crane
    Low headroom workshop,A3{1-20t}LDA single girder overhead crane
    Normal workshop,A5{1-20t}Euro type single girder overhead crane
    Normal workshop,A4{5-32t}LH double girder overhead crane
    Normal workshop,A5{5-550t}QD double girder overhead crane
    Normal workshop,A5{5-220t}Euro type double girder overhead crane
    Grab model crane,A5~A8{5-20t}QZ grab bucket overhead crane
    Explosion proof crane,A5{5-500t}QB explosion proof overhead crane
    Magnet model crane,A6{5-50t}QC magnet overhead crane
    Steel foundry crane,A7~A8{5-74t}QDY foundry casting crane
    Steel foundry crane,A7~A8{10/320-320/80t}YZ foundry crane

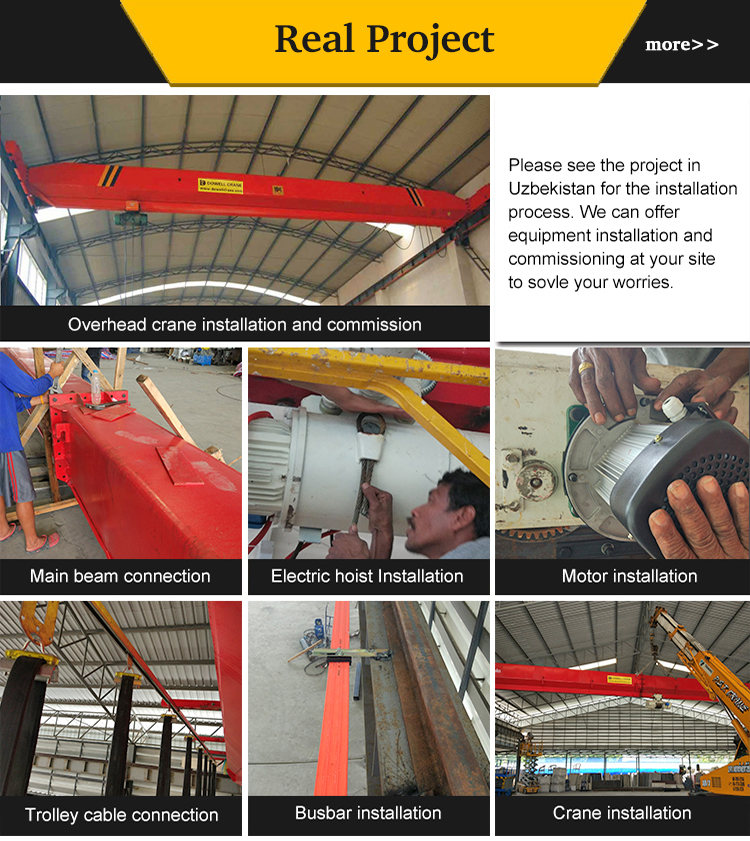

    The outlook of above cranes please check following relative crane photos
