Brand Name : | Dowellcrane |
Model Number : | Diesel Winch |
Certification : | SGS IOS CE |
Price : | USD 1000-10000 /Set |
Payment Terms : | L/C, T/T |
Supply Ability : | 2000 Set/Sets per Month |
Delivery Time : | 20days |

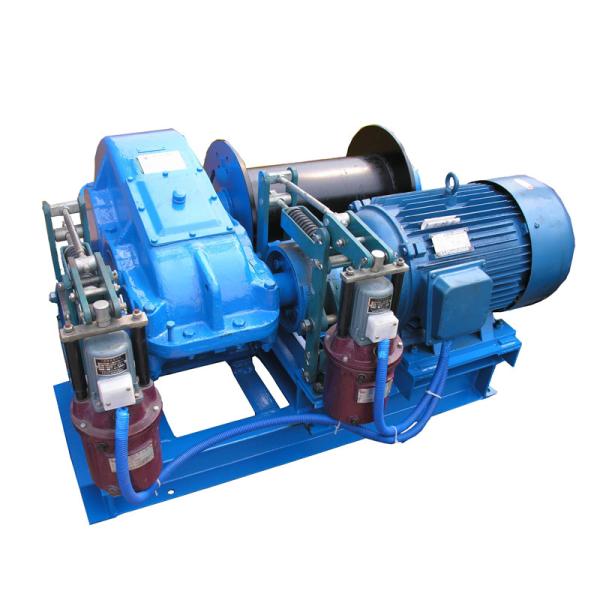

Electric Winch Machine Description
Winch is driven by human or mechanical power drum, winding ropes to
complete the traction device for work, which can be vertical,
horizontal or inclined pulling heavy objects. Divided into manual
and electric winch.
Electric winch is powered by electric, and it composed by electric
motor, coupling, brake, gear box,drum and frame.
Electric Winch Machine Drawing
Electric Winch Machine Parameters
WINCH TECHNIQUE PARAMETER | ||||||||||||
Rated load (KN) | Rated speed (m/min) | Rope capacity (m) | Rope Diameter (mm) | Motor type | Motor power (KN) | Overall dimension (mm) | Weight(Kg) | Type | ||||
JK MODEL FAST SPEED ELECTRONIC CONTROL WINCH | JK0.5 | 5 | 22 | 190 | 7.7 | Y100L-4 | 3 | 620*701*417 | 200 | / | ||
JK1 | 10 | 22 | 100 | 9.3 | Y112M-4 | 4 | 620*701*417 | 300 | / | |||
JK1.6 | 16 | 24 | 150 | 12.5 | Y132S-4 | 5.5 | 945*996*570 | 500 | / | |||
JK2 | 20 | 24 | 150 | 13 | Y132M-4 | 7.5 | 945*996*570 | 550 | / | |||
KK3.2 | 32 | 25 | 290 | 15.5 | YZR180L-6 | 15 | 1325*1335*840 | 1011 | / | |||
JK3.2B | 32 | 30 | 250 | 15.5 | YZR200L-6 | 22 | 1900*1738*985 | 1500 | / | |||
JK5 | 50 | 30 | 300 | 21.5 | YZR225M-6 | 30 | 1900*1620*985 | 2050 | / | |||
JK5B | 50 | 25 | 210 | 21.5 | YZR225M-8 | 22 | 2250*2500*1300 | 2264 | / | |||
JK8 | 80 | 25 | 160 | 26 | YZR280S-8 | 45 | 1533*1985*1045 | 3000 | / | |||
JK10 | 100 | 30 | 300 | 30 | YZR315S-8 | 55 | 2250*2500*1300 | 5100 | / |
Electric Winch Machine Advantages
Packing and Delivery
Our Advantage
How to choose the suitable electric wire rope winch?
1,Application? Lifting or pulling what matrial/cargo?
2,What capacity do you need?
3,Winch's working direction:horizontal or vertical?
4,How about the working speed?
5,How many of the working distance?
6, Whether need us providing wire rope?
![]() |
