    Industrial 3500m Wire Rope Electric Winch KN10 Load 15m/Min

    Ask Lasest Price
    Brand Name : DOWELL
    Model Number : JM
    Certification : CE ISO9001: 2000
    Price : USD 3000-30000/ SET
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10000SET/YEAR
    Delivery Time : 20 work days
    • Product Details
    • Company Profile

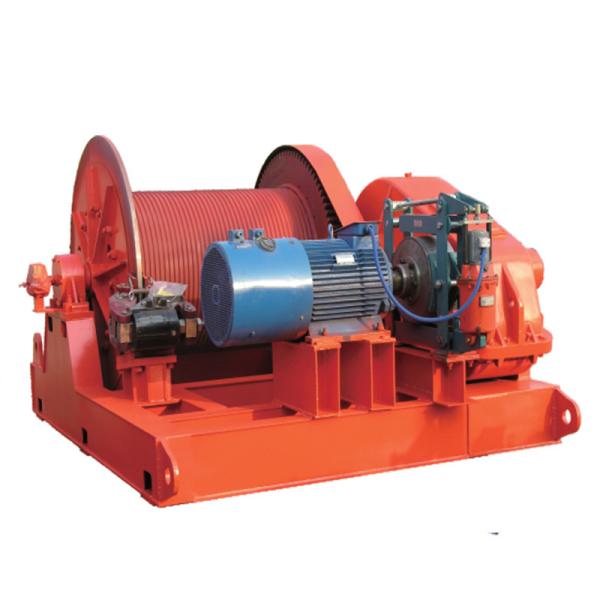

    Industrial 3500m Wire Rope Electric Winch KN10 Load 15m/Min

    Industrial Wire Rope Electric Winch Contact Supplier


    Product Description


    Industrial Wire Rope Electric Winch Contact Supplier. Range of electric winches with a large winding capacity allowing them to address a wide range of uses. For lifting applications only. Our electric winch have long life time and good price .

    Welcome you contact us and tell us your detail demands .


    • - Lifting applications only

    • - Industry

    • - Building and public works

    • - High-rise building sites

    • - Load elevators Comply with Machines directive



    Technical parameters

    Send your special needs to us!

    Basic ParametersRated LoadAverage Speed of RopeCapacity of RopeRope DiameterMotor PowerOverall DimensionTotal Weight
    ModelKNm/minmmmKWmmkg
    JM110151009.33620×701×417270
    JM1.6161615012.55.5945×996×570500
    JM22016150137.5945×996×570550
    JM3.2329.515015.57.51430×1160×9101100
    JM3.2B321219515.57.51082×1014×610536
    JM5501027021.5111235×1230×8051560
    JM5B509.520021.5111620×1260×9451800
    JM5C509.535021.5111235×1230×8051800
    JM5D501535021.5151235×1230×8051850
    JM5E502035021.5221235×1230×8052000
    JM202001060043453950*2560*19509900
    JM25250970048554350*2800*203013500
    JM32320970056754500*2850*210014800
    JM50500980065904930*3050*225019500
    JM6565010.53600641605900*4680*32004600

    There are diffrent types of winch for your reference.

    JM Slow speed small electric winch


    JM winch is gears reducer driving , Mainly used for lifting ,pulling ,draging the hearvy cargo .


    Such as : To install and remove the large concrete ,steel structure and machanical equipement . and appy to civil construction , installation project .

    JK fast speed electric winch


    JK electric winch is mainly used for lifting ,draging heavy cargo in construction site

    Applicable to the construction , mining crane , civil engieering construction and small equipment installation .

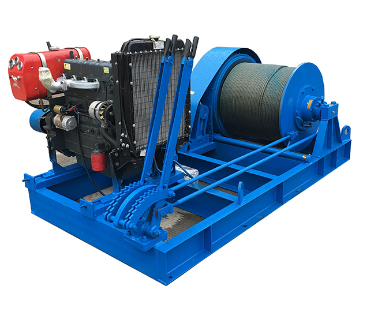

    JKL hand control fast speed winch


    JKL winch can be diesel engine ,also can be electric engine . It is controlled by hand .

    The pulling capacity , drum capacity ,rope Speed and rope diameter can be customized according to user requirement .
    It mainly used for construction , move the heavy material .ect .

    JMM Friction electric winch


    JMM electric winch is mainly used for long distance pulling .

    JMM electric winch characteristic is stable wire rope speed and lifting .
    Appliable to all kinds of bridges , port , terminals and other construction project in large factories , power engineering equipment installation .
    It can be customized by user's needs.

    Electric winch delivery pakaging

    Details Images

    Inquiry notice!!!
    1. The Max. pulling capacity?(Ton or KN)
    2. Lifting speed?(m/min) (to confirm fast speed or low speed)
    3. The Max. rope length?(m)
    4. Diameter of wire rope?(or following our standard)
    5. The power source standard?(380V, 50Hz, 3phase or others)

    6. How to use the winch?(Lifting or horizontal pull?)
    7. What type meterial will you to pull(lift)?
    Please try to confirm the above information, if difficult to you, please see the specification table for your reference or
    tell us your questions. We will choose a suitable products for you.
