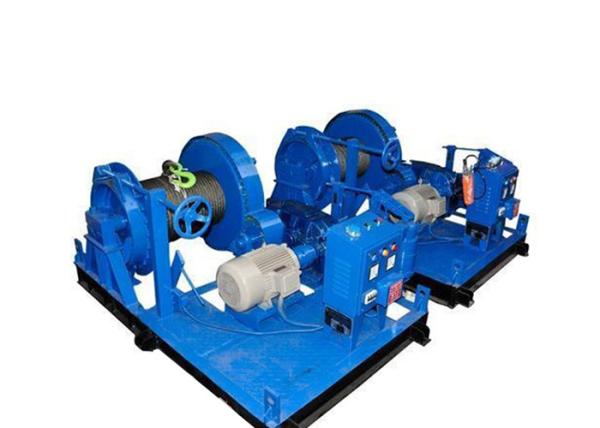

    Lightweight Wire Rope Hydraulic Electric Anchor Winch For Lifting

    Ask Lasest Price
    Brand Name : Dowellcrane
    Model Number : JM JK
    Certification : CE ISO
    Price : 2000-20000USD/Set
    Supply Ability : 5000Sets/year
    Delivery Time : 10days
    • Product Details
    • Company Profile

    Lightweight Wire Rope Hydraulic Electric Anchor Winch For Lifting

    Lightweight Wire Rope Hydraulic Anchor Electric Winch For Lifting


    Description:


    Electric Winch is a combined multi-function winch, which can be used as anchor winch, also can be used as mooring winch. So the winch has gypsy wheel for anchor chain, it also has drum for wire rope. The anchor and mooring winch is widely used on different kinds of boat for anchoring and mooring.


    Product Feature:


    1. Driven Mode:Electric or Hydraulic

    2. Configuration: It consists of the windlass, windlass brakes,warping end,hydraulic motor, drum, main axis, drum brake, operation mechanism of clutch,supporting walls and the base,etc.

    3. Chain Diameter: From 12.5mm to 100mm.

    4. Anchor hoist normal speed: Over 9m/min

    5. Rated Pull: From 6 KN to 500KN

    6. Holding Load: with chain stopper,Breaking Load

    7. Brake: Manual or Hydraulic

    8. Claws Clutch: Manual or Hydraulic

    9. Control Option: Local with Remote Control

    10. Certificate: ABS, GL, LR, BV, NK,DNV, CCS, etc.


    Application:


    3 ton Electric winch is used in power transmission and distribution engineering, telephone construction
    tower erection, traction cable, line, hoisting tools or heavy objects, the electric winch is driven by a belt,
    effectively prevent the damage of overload, there are pros and cons and the speed of file, anti reverse
    gear moment to ensure construction safety.
    Winch can be modified as per requirement, such as changing curve capstan into straight even
    cylindrical shape and coming with steel rope.

    electric lifting capstan winches parameters:

    ItemsRated load,
    KN
    Rated speed,
    m/min
    Rope capacity,
    m
    Rope diameter,
    mm
    MotorPowerSize,
    mm
    Weight,
    kg
    JM110151009.3Y112M-63620*701*417270
    JM1.6161615012.5Y132M2-65.5945*996*570500
    JM2201615013Y160M-67.5945*996*570550
    JM3.2329.515015.5YZR160M2-67.51430*1160*9101100
    JM3.2B321219515.5YZR160M2-67.51082*1014*610536
    JM5501027021.5YZR160L-6111235*1230*8051560
    JM5B509.520021.5YZR160L-6111620*1260*9451800
    JM5C509.525021.5YZR160L-6111235*1230*8051800
    JM5D501525021.5YZR180L-6151235*1230*8051850
    JM5E502025021.5YZR200L-6221235*1230*8052000
    JM6609.527024YZR180L-6151235*1230*8051800
    JM880825026YZR180L-6152090*1475*9562900
    JM8B809.535026YZR180L-6151075*1598*9852650

    Multiangle display:
