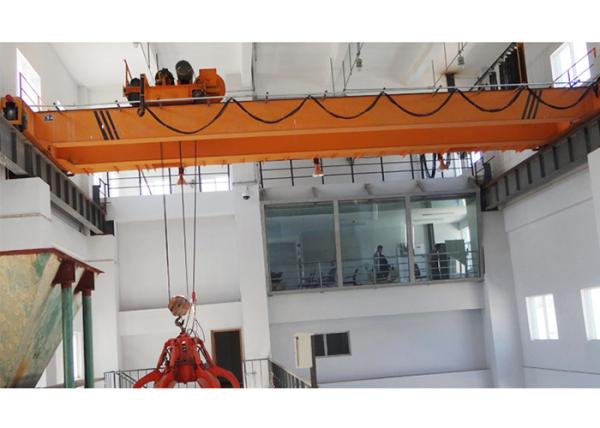

QZ Model Hydraulic Grab Bucket Double Girder Overhead Bridge Crane

Description:

1. Main beam - The main traveling structure of the crane which spans the width of the bay and travels in a direction parallel to the runway. The bridge consists of two end trucks and one or two bridge girders depending on the equipment type. The bridge also supports the trolley and hoisting mechanism for up and down lifting of load.

2. End trucks - Located on either side of the bridge, the end trucks house the wheels on which the entire crane travels. It is an assembly consisting of structural members, wheels, bearings, axles, etc., which supports the bridge girder(s) or the trolley cross member(s).

3. Bridge Girder(s) - The principal horizontal beam of the crane bridge which supports the trolley and is supported by the end trucks.

4. Runway - The rails, beams, brackets and framework on which the crane operates.

5. Runway Rail - The rail supported by the runway beams on which the crane travels.

6. Hoist - The hoist mechanism is a unit consisting of a motor drive, coupling, brakes, gearing, drum, ropes, and load block designed to raise, hold and lower the maximum rated load. Hoist mechanism is mounted to the trolley.

7. Trolley - The unit carrying the hoisting mechanism which travels on the bridge rails in a direction at right angles to the crane runway. Trolley frame is the basic structure of the trolley on which are mounted the hoisting and traversing mechanisms.

8. Bumper (Buffer) - An energy absorbing device for reducing impact when a moving crane or trolley reaches the end of its permitted travel, or when two moving cranes or trolleys come into contact. This device may be attached to the bridge, trolley or runway stop.

Different spreaders:

Dowell Crane Co., Ltd is a China-leading company in crane manufacture and crane trading business. We serve a broad range of customers from all over the world, providing a complete set of advanced lifting projects, including Gantry crane, Bridge crane, Portal crane,
Beam launcher, Electric winch, Lifting platform and so on. Dowell crane is sticking to the global optimal procurement of raw materials and parts to make innovations in technical details of electric control and mechanical transmission,etc.We continue the wide and deep cooperation with the well-known transnational enterprises such as Simens and Sew in Germany, Schneider in France and ABB in Switzerland, etc.

Company Strength

Dowell Crane Co., Ltd is a China-leading group of crane businesses which was founded in 1955, Only one company has 60years manufacture experience. And serving a broad range of customers all over the world to provide a complete set of advanced lifting project, including Gantry crane, Bridge crane, Jib crane, Accessory. Our clients include manufacturing and process industries, shipyards, ports and so on. Regardless of your lifting needs, dowellcrane Machinery Group is committed to providing you with lifting equipment and services that increase the effectiveness and value of your business.

a). Dowell Crane Co., Ltd have already obtained the CCC,CE,BV,SGS,ISO OHSAS certification's and have won over 60 honors.

b). China's leading mechanical research and design institute and famous university provides advanced technical support for us.

c). Serviced for more than 5000 companies, and the products popular in more than 40 countries.

d). Through decades of unremitting efforts, now, Dowell Crane Co., Ltd covers an area of 180,000 square meters and over 380 sets of advanced equipments. Management staff reach to 860, and our worker have more than 10000.

Packing & Delivery terms:

1. Hoist and electric parts will be packed by plywood crate, for avoiding the demage from goods crash and impact during the delivery.

2. Girders and other main parts will be packed by plastic woven cloth, for preventing rust from soppy condition during the transportation.

3. Only the best transport solution will be taken for saving your cost uttermost on finance, security and time.
